High Brightness / Anti-Reflection / Ultra-Stable: GW Laser P-Series Single-Mode Fiber Laser
2025-06-27 14:29:38

Still worrying about the poor processing effect of high anti-materials (copper, aluminium, gold, silver)?

Conventional lasers are at a loss when it comes to welding copper with insufficient depth of fusion and low cutting efficiency?

GW Laser's high-brightness P series single-mode fiber lasers, covering the power range of 500W~6000W, redefine the new standard of industrial laser processing with four core advantages!

High brightness, pushing the limits of energy density

Under the same power conditions, the smaller the core diameter, the higher the brightness, the stronger the equipment's anti-high-reflective capability, the higher the evaporation threshold of the breakthrough material, the easier the material is absorbed, and the processing of high-reflective materials is easy as pie. To 3000W laser, for example, most of the laser manufacturers on the market, most of the core diameter can only do 20μm, and GW Laser high-brightness P series 3000W can achieve 14μm cable output, 3 times amplification of the weld power density of up to 200MW/cm ², beam quality M ² ≤ 1.08, copper welding depth of melting can break through 4mm, easy to deal with the new energy batteries, electric power, Heat sinks and other fields of thick copper welding needs.

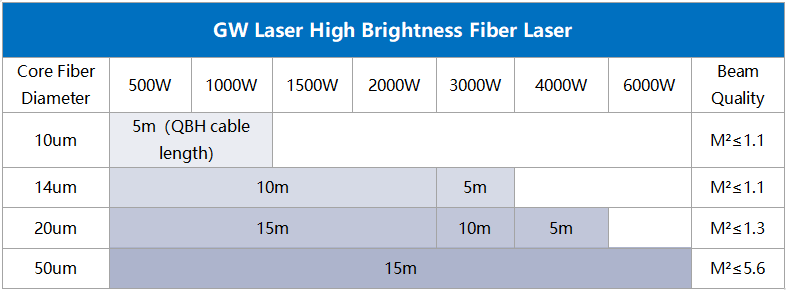

GW Laser high brightness P series 4000W can achieve 20 μm cable output, beam quality M ² ≤ 1.3, 6000W can achieve 50 μm cable output, M ² ≤ 5.6, the output of the fibre core diameter is small, high beam quality, can be easily applied to new energy batteries welding, precision electronics processing, aerospace materials processing, and other high-end manufacturing areas of the high anti-materials precision welding and processing.

Self-developed anti-high-reflection: gold, silver, copper and aluminium, easy to handle

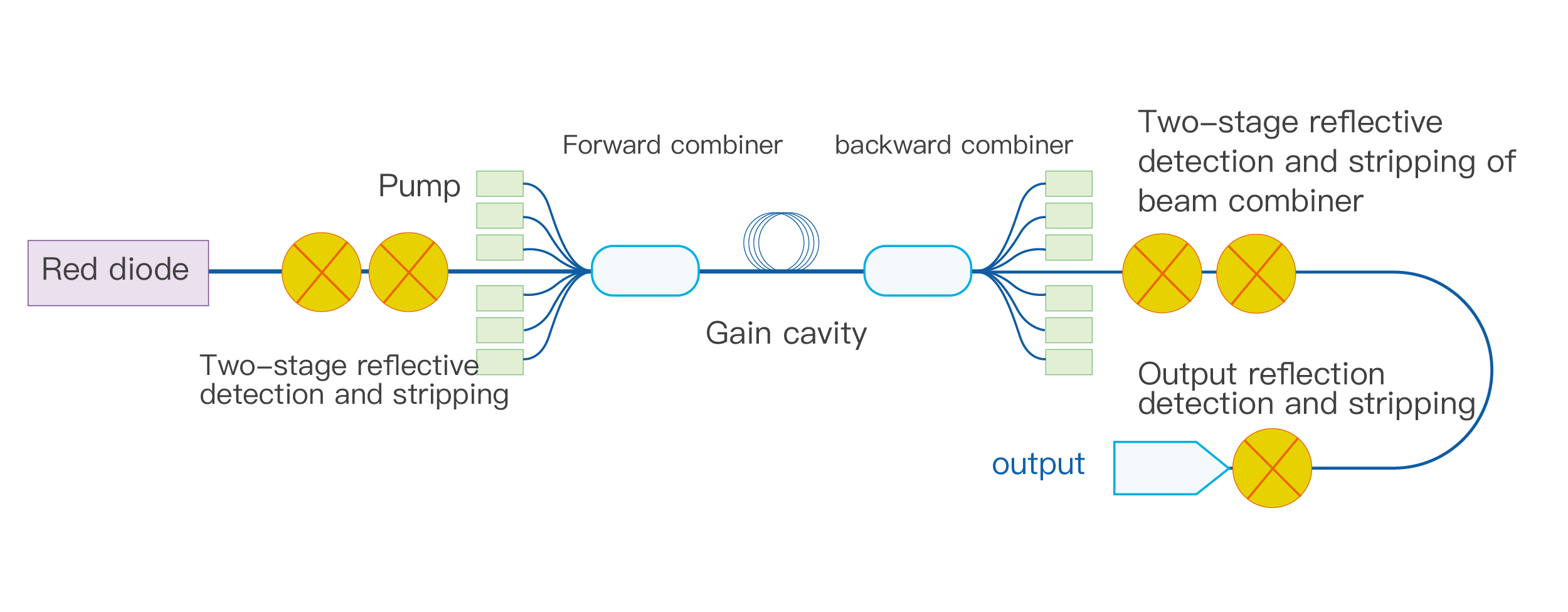

GW Laser high-brightness P series fiber laser adopts self-developed ‘ABR super anti-back-reflection technology’, which is a three-layer stripping of the returned light, reduces the damage of the returned light on the laser resonance cavity, and effectively increases the laser's stability and reliability, and solves the problem of high-reflection from its core source. In the copper and aluminium cutting and welding, gold, silver and precious metal precision welding and cutting and other high reaction scenarios, the performance is excellent and stable, leading the industry technological innovation.

Global Certification: Quality Goes Global

GW Laser's high-brightness P-Series lasers have a wide range of international certifications such as EU CE certification, US FCC certification, FDA registration, and other international certifications to meet import and export needs. When you choose GW Laser, you get not only high-performance lasers, but also worry-free export compliance, integrated security, and help customers' business to reach the world!

Technology Leadership, Stable Performance

GW Laser High Brightness P series laser power attenuation <3%, longer equipment life, lower long-term cost, continuous 100 pulse output spot consistency >95%, power fluctuation <3%, power output of a minimum of 1%, to meet the needs of a variety of processing. Built-in waveform editor with slow-rise and slow-fall functions, 64 customizable pulse outputs, response time <5us, and maximum modulation frequency up to 50kHz.

GW Laser's P-Series single-mode fibre lasers are more than just a tool, they are the core of your victory in the high-end manufacturing field! High brightness, anti-high-reflection, ultra-stable, intelligent, high efficiency, fully meet the new energy, 3C electronics, precision instruments, aerospace, scientific research and other fields of demanding needs. In the future, we will continue to improve the quality of products and services, to make a global statement for Made in China, and to become a leading brand of fibre lasers in the industry.
