When selecting a new fiber laser system, the question I get asked most frequently is: “Do I need a water-cooled model, or is air cooling sufficient?”

The straightforward answer is: it all depends on your power requirements, duty cycle and installation environment. Many users end up either under-specifying or over-specifying their equipment — and either way, it comes with extra costs.

In fact, there are three distinct cooling designs. Confusing them is the main cause of wrong selection.

Three Types of Cooling Systems

Forced Air Cooling: Simple, Portable yet Limited

This cooling method uses no refrigerant or water. Heat is dissipated directly via fin heat exchangers and high-speed fans.

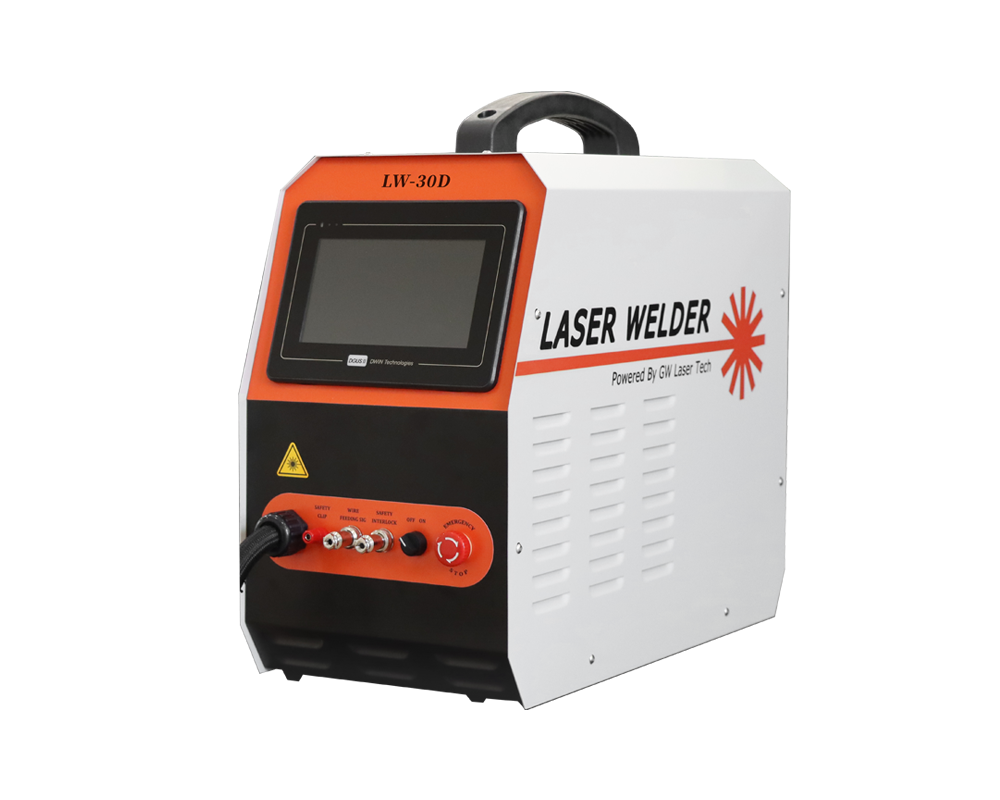

Applications: Handheld welding (where portability is a priority), on-site maintenance, and low-duty-cycle operations below 2kW.

Key limitations: Thermal performance declines in high-temperature environments or during continuous operation above 2kW. It is ideal for portable, lightweight use cases, but not for factory production lines.

Compressor Cooling (Refrigerant): An Underrated Mid-Range Solution

This is a practical yet often overlooked technology, which is rarely fully explained in product datasheets.

The compressor cooling system adopts a compact closed-loop refrigerant cycle integrated inside the laser unit, similar to a mini air conditioner. No water pipes, external chillers or additional facility connections are needed.

Advantages:

• No water infrastructure required — plug-and-play

• Around 40% more energy-efficient than equivalent water-cooled systems

• Low maintenance: no water quality management, corrosion inhibitor treatment or risk of coolant leakage

• Smaller footprint: no extra space for standalone chillers

• Excellent thermal stability with consistent operating temperature maintained by the active refrigeration circuit

It covers a power range of 2kW to 12kW, matching the majority of industrial welding applications.

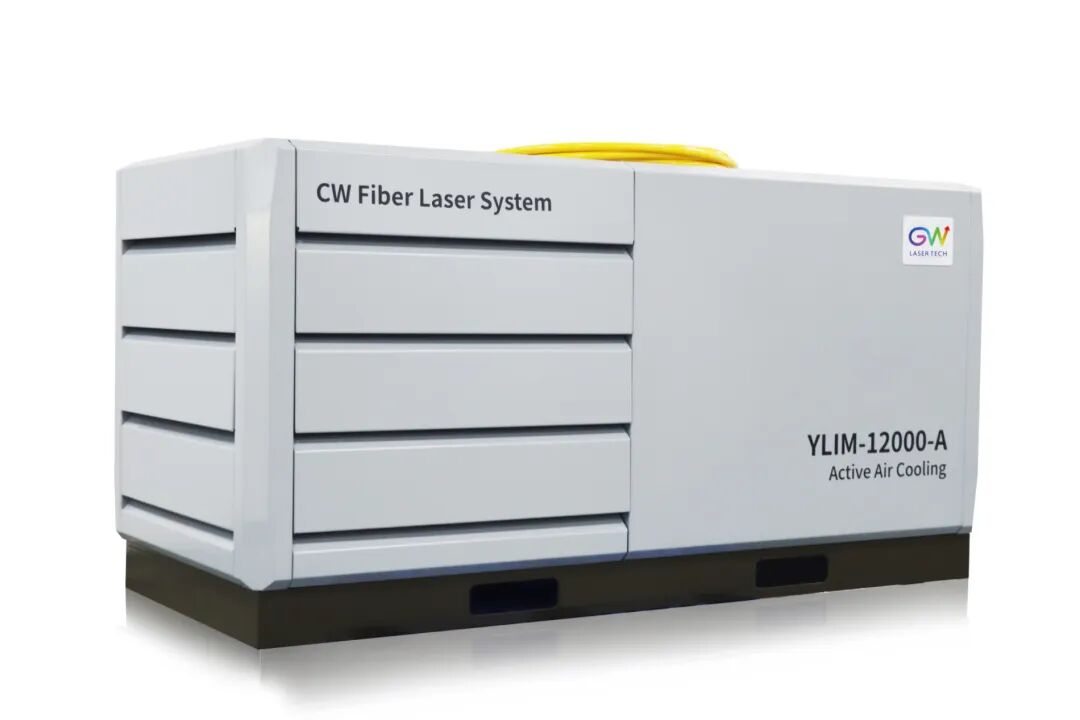

GW Laser is the first enterprise worldwide to industrialize this technology. We launched the world’s first compressor-cooled 1500W fiber laser in 2021, followed by a 10kW model in 2023. The platform is now validated up to 12kW, backed by 16 core patents for cooling architecture.

Water Cooling: Standard for High-Power & 24/7 Production

Advantages:

• Superior heat dissipation, maintaining stable temperature and output even at ultra-high power levels

• Supports full-duty-cycle operation, designed for round-the-clock production

• Scalable to extremely high power: 10kW, 20kW, 60kW and beyond

• Lower cost per watt at maximum power output

•


Disadvantages:

• Reliance on supporting infrastructure: water piping, dedicated space and drainage systems

• Ongoing maintenance: water quality control, corrosion inhibitor treatment and chiller filter replacement

• Higher operating costs: chiller water pumps consume an additional 2–4kW of power

• Risk of coolant leakage, which poses reliability threats on production floors

Real-World Cost Comparison (6kW Compressor Cooling vs Water Cooling)

Most laser manufacturers do not disclose this key data on specification sheets.

A 6kW water-cooled laser consumes far more power than its rated 6kW. The external chiller draws an extra 2–4kW of parasitic power, which runs continuously even when the laser is idle between workpieces.

Annual operation: 16 hours per day, 250 working days per year

• 6kW water-cooled system: Approximately 58,000 kWh per year

• 6kW compressor-cooled system: Approximately 40,000 kWh per year

At an industrial electricity rate of $0.12 per kWh, the compressor-cooled solution saves around **$2,200 annually** just on cooling power. Over a 5-year service life, the total savings exceed $11,000, excluding reduced maintenance fees and production downtime.

Selection Guide
